The Organ of Trinity Episcopal Cathedral in Portland, Oregon


Deze sampleset is normaalgesproken alleen via een download-link verkrijgbaar. Voor een meerprijs kunt u hem op een USB-stick verkrijgen.


This sample set is normally only available via a download link. You can get it on a USB-stick for an additional charge.

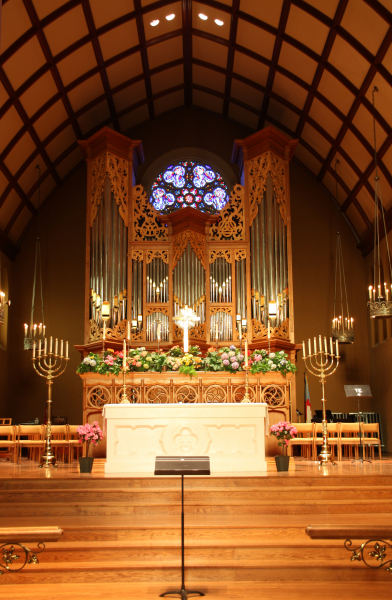

The organ of Trinity Episcopal Cathedral in Portland, Oregon was built in 1984-1987 by Manuel Rosales (opus 11). Its construction was possible thanks to the vision and efforts of Canon Dr. John Strege, the organist at Trinity for 37 years until his retirement in 2010, and through a generous gift of Bea Gerlinger that covered the bulk of the cost of the organ. Many parishioners volunteered during construction and installation, which occurred at the same time as extensive chancel renovations and improvements.

The commission for the new organ was given to Manuel Rosales, an organ builder who was developing a reputation as one of the most inspired organ builders in the United States. John Strege’s vision was to create a magnificent and powerful liturgical instrument which would shine in big concert pieces as well as in early music or chamber works. He was inspired by French cathedral organs, especially by the St. Sulpice organ in Paris. The instrument is not, however, a copy of any existing organ; instead, Manuel Rosales made his own statement. Indeed, according to numerous testimonies, opus 11 is not only a really good organ, but it also mirrors well the character of its builder: A lot of power, a lot of energy, clarity of speech, strong character of voices, rich and exuberant ensembles. For example, the Cromorne of the Positive division has probably the most Cromorne character ever heard - a true "Cromorne Mirabilis" as it is sometimes called by its intimate fans. After installation, full organ was measured in the arch at the front of the transept at a staggering 109dB. Hearing this organ in person is a visceral experience not soon forgotten, thanks especially to the exciting fire of its reeds. But its awesome power is matched by its beauty, with many delicate details such as the presence of both a Bourdon 8 and Flute Harmonique 8 on the swell, a harmonic flute chorus of 8-4-2, and meticulous voicing throughout the organ that allows many stops to serve as colorful solo stops. There is an 8’ Principal on all three divisions, and each division has a Cornet of varying colors for use in French, Flemish, and English music. Barbara Owen characterized the instrument as a "neo-Baroque in concept, with a Romantic gesture". Well, it is an American eclectic organ, one of the best of its kind, with a clear French symphonic influence.

The "Positif" sits at the top of the organ case, played from the lowest keyboard, formed along the Classical French traditions. This is where we meet the (neo)-Baroque elements most. (Try it yourself by retuning the instrument to a meantone tuning using the Hauptwerk Temperament Menu.) The middle keyboard operates the “Grand Orgue” with its enormous Principal chorus starting with the Prestant 16 in the facade and crowned with eleven (!) ranks of a Mixture. The sonority and the harmonic richness of this chorus is rarely met. The pipes for this division are below the Positif, at the level of the impost. The top keyboard operates the "Récit expressif", the swell enclosed division of a symphonic type, located at floor level. The pedal is located in the main case at impost level, with the low-pitched stops behind the organ case. The pedal offers a solid foundation to the instrument, including two large-scale 32' stops: a Bourdon 32' constructed for this organ, and a reused Magnaton 32' by Austin from 1905, restored and named Contra Trombone 32'. Low C of this full-length stop is a nearly 40cm (15”) in diameter. The other two 32' stops are acoustical, using deep quints of the Bombarde 16' and a bass cornet from the Open Wood 16' to produce an illusion of another strong 32' fundamental.

Opus 11 contains 54 stops and 85 ranks on 93mm of wind. T
he wind for the organ is regulated by three large wedge-shaped bellows and wind stabilizers that can be turned off as desired for 17th-18th century literature. This feature is faithfully modelled in the sample set.

The instrument has electric stop action, but suspended mechanical key action. The organ case is of white oak. The pipe shades, carved of basswood, contain imagery of the Trinity, and the leaf design is based on the species Heracleum lanatum (common name: Cow parsnip) that grows in the Pacific Northwest.


Reverb time

The reverb time is ca. 2 seconds.

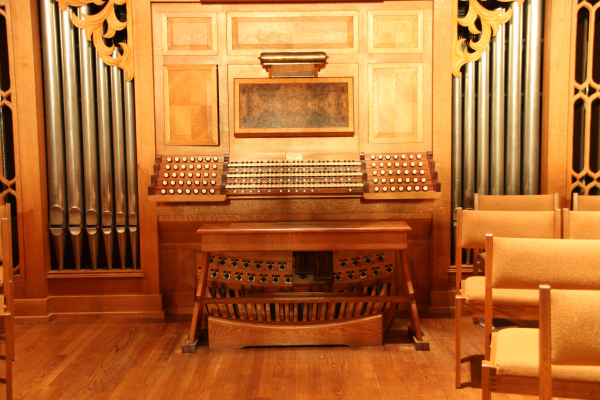

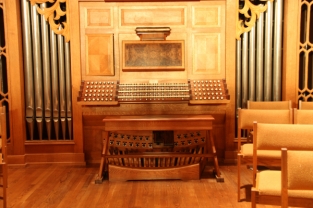

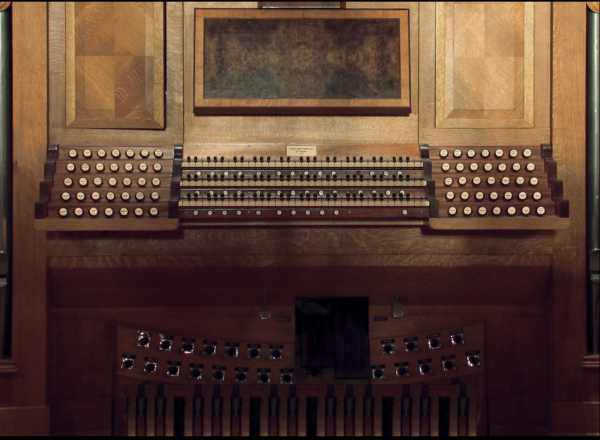

Keyboards, pedalboard

The original compass of the keyboards is 61 keys (full 5 octaves).  The original compass of the pedal division is 32 keys.


All ranks (except Mixtures) of all the divisions were recorded with and without tremulants for the most convincing tremulant behavior. However, loading the authentic tremmed ranks consumes large amount of RAM. It is possible to select to use the artificial tremulant instead to save RAM (the switch is located on the mixer tab).


RAM consumption: 6-channel surround

  • 16-bit, other settings default:    25.1 GB
  • 20-bit, other settings default:    42.2 GB (recommended)
  • 24-bit, other settings default:    47.8 GB

RAM consumption: 2-channel wet

  • 16-bit, other settings default:    9.3 GB
  • 20-bit, other settings default:   15.1 GB
  • 24-bit, other settings default:   17.4 GB

Screen resolution 1280x1024 px or more.

Polyphony of 6000 voices recommended for the full suround (3000 pipes minimum).

Polyphony of 1800 simultaneous pipes recommended for use of the wet sample set.

Surround format

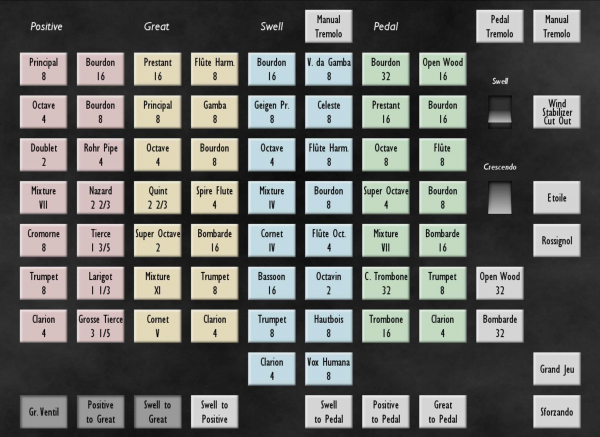

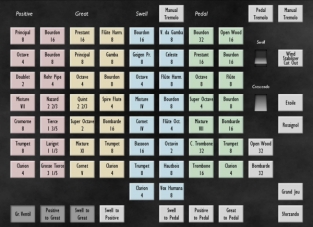

The sample set is offered in the Surround variant (6 channels). In addition to the usual 4-channel surround, there are two more alternative front channels. In total, there are 4 front audio channels and 2 rear channels. The two pairs of the front ranks feature two different recording positions: direct (near to the pipes) and diffuse (distant from the instrument). These two pairs of the front ranks can either be mixed together freely to achieve any listening position between the two extremes, or used separately - depending on the prefererences of the user. A dedicated "mixing desk" is available in Hauptwerk to mix the sound to the desired level (see screenshots).


Extra informatie
1. Manual C–c4 2. Manual C–c4 3. Manual C–c4 Pedal C–g1
Bourdon 16' Prestant 16'   (swell enclosed) Bourdon 32'
Principal 8' Principal 8' Bourdon 16'       Open Wood 32*
Bourdon 8' Flute harmonique    8' Geigen Principal   8' Open Wood 16'
Octave 4' Bourdon 8' Bourdon 8'   Prestant 16'
Rohr Pipe 4'   Gamba 8' Flute harmonique   8' Bourdon 16'
Grosse Tierce   3 1/5'       Octave 4' Viola da Gamba 8' Octave 8'
Nasard 2 2/3' Spire Flute 4' Celeste (beating) 8' Flute 8'
Doublet 2' Quint 2 2/3'       Octave 4'   Bourdon 8'
Tierce 1 3/5' Super Octave 2' Flute Octaviante 4' Super Octave 4'
Larigot 1 1/3' Cornet V Octavin 2' Mixture VII
Mixture VII Mixtur XI Cornet IV Contra Trombone   32'
Trumpet 8' Bombarde 16' Mixture IV Bombarde 32'
Cromorne 8' Trumpet 8' Bassoon 16' Bombarde 16'
Clarion 4' Clarion 4' Trumpet 8' Trombone 16'
        Hautbois 8' Trumpet 8'
    Tremulant   Vox Humana 8' Clarion 4'
Tremulant     Clarion 4'
        Pedal Tremulant
    Tremulant   * acoustic only

Tremulants: The original organ has two tremulants. One pedal tremulant, and a single manual tremulant, affecting all three manuals simultaneously. This was changed in the virtual model. Two manual tremulants are modelled, one independent for the Swell and the other for the first and second manual together.

Bombarde 32': the original Bombarde is acoustic only stop. We added a real Bombarde 32' to the virtual model as adviced by Manuel Rosales.

Couplers: Gt/Ped 8', Sw/Ped 8', Pos/Ped 8'; Sw/Gt 8', Pos/Gt 8', Sw/Pos 8';

Accessories: Etoile (Zimbelstern), Rossignol (Bird song); Full organ switches (Sforzando and Grand Jeu), crescendo pedal, swell pedal;

Divisional and general combinations.
